SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench

1. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Component Description

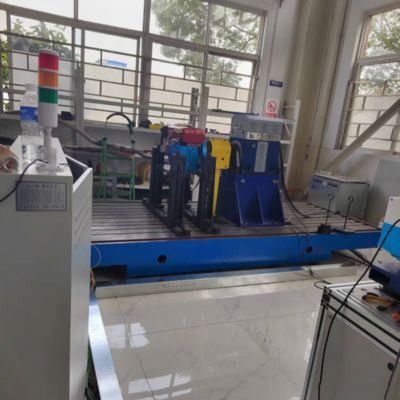

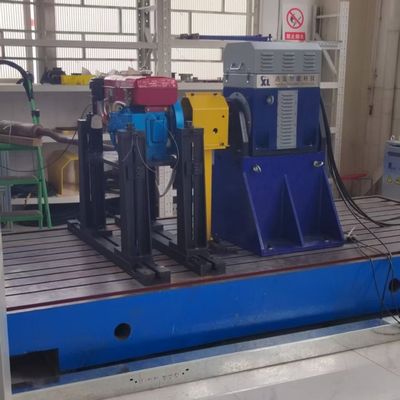

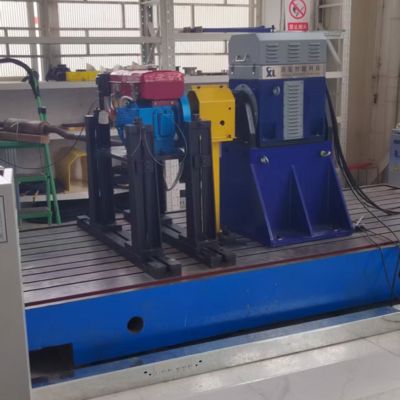

The SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench is a high-precision integrated testing system specifically designed for the research and testing of 75kW-class UAV engines. This system integrates a high-precision electric dynamometer, a modular measurement and control system, and a multi-channel data acquisition unit, enabling comprehensive evaluation of key performance parameters of turboshaft/turboprop engines, such as torque, speed, power, and fuel consumption.

2. SSCG75-3000/10000 75kW Electric Dynamometer Technical Parameters

3. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Core Advantages

1) High-precision control : The torque flange and fuel consumption meter achieve an accuracy of 0.2%FS, and combined with the PID algorithm, speed fluctuation control is realized (typical value < ±0.1%), ensuring the reliability of test data.

2) Four-quadrant energy management : Supports dual-mode operation of electric/generator, with high energy feedback efficiency, and adapts to the full-condition testing needs of drone engines.

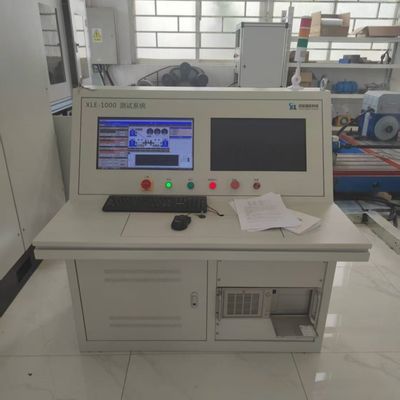

3) Modular scalability : The XLE-1000 measurement and control system supports multi-channel data acquisition, and optional components can be flexibly adapted to different test scenarios.

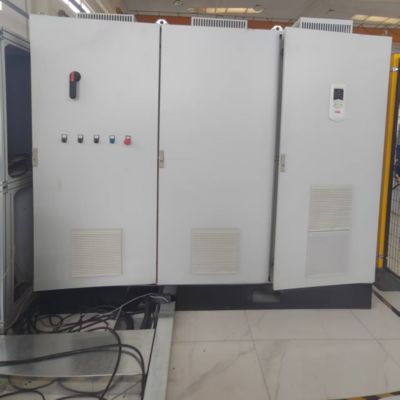

4) Safety protection : The frequency converter system integrates overload, overvoltage, and overheat protection to ensure stability during high-speed testing.

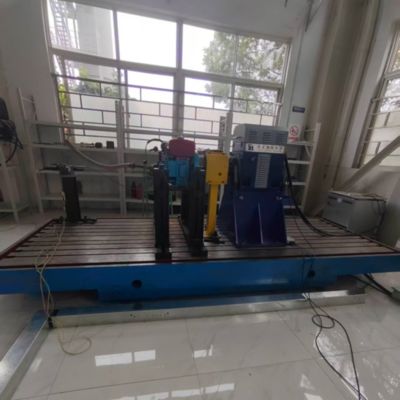

5) Low vibration design : The shock absorber is adapted to vibration frequencies of 5-10Hz, and the cast iron plate ensures testing accuracy.

4. SSCG75-3000/10000 75kW UAV Engine Electric Dynamometer Test Bench Application Areas

1) Development of UAV engines : Full-process testing of starting, acceleration, and braking for 75kW-class turboshaft/turboprop engines.

2) Aerospace propulsion verification : Supports durability testing of difficult-to-machine materials such as high-temperature alloys and titanium alloys.

3) New energy power testing : Energy feedback efficiency assessment of hybrid Powertrain systems.

4) Industrial motor calibration : used for high-precision motor torque-speed characteristic calibration.

5. SSCG75-3000/10000 75kW Unmanned Aerial Vehicle Engine Electric Dynamometer Test Bench Reference Standards

1) Electrical safety standards : Complies with IEC 60034-30-1 energy efficiency standards.

2) Data acquisition standards : in accordance with the ISO 10012 measurement management system.

3) Environmental adaptability standard : Meets the environmental testing requirements of GB/T 2423 series.

6. UAV Engine Electric Dynamometer Test Bench Model List

7. Delivery and After-sales Service

Delivery: Standard models ship within 90 days; customized models ship within 90-180 days (including international logistics and customs clearance assistance).
